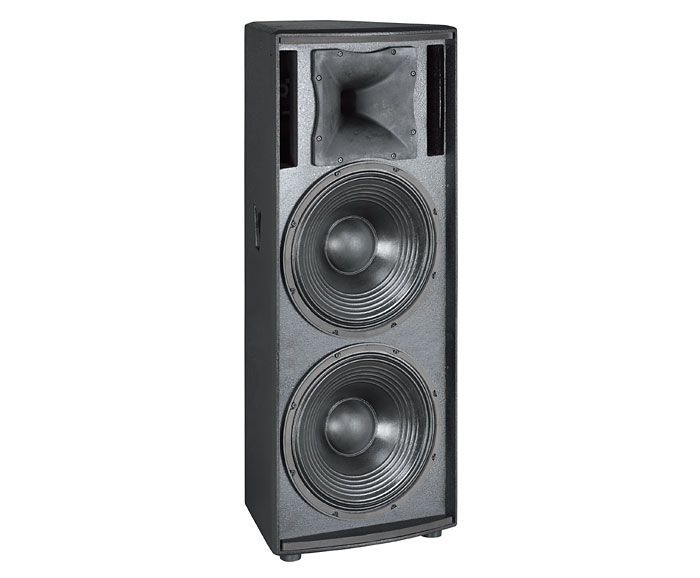

MF-5225
DETAIL INFO
| Technical Parameter | |
| Frequency Response | 45Hz-17KHz(±3bB)/40Hz-22KHz(±10dB) |
| Sensitivity（1W/1m） | 101dB(50Hz-20KHz) |
| Nominal lmpedance | 40hm |
| Power Rating | 700W(AES) |
| Peak power | 2800W(PEAK) |
| Crossover Frequency | 1.7KHz |
| LF Components | 2×15”woofer(3”voice coil) |
| HF Components | 1×3”exit compression driver(3”voice coil) |
| Nominal Coverage | 80°(H)×50°(V) |
| Calculated Output(max) | 128dB SPL,134dB SPL peak |
| Dimensions(HxWxD) | 1142×452×418(mm) |
| Weights | 48(Kg) |
| Connectors | 2Neutrik NL4MP connectors |
| Suspension Hardware | M8 Rigging point |
| Applications | |
| Conference room | |
| Background music | |
| House of worship | |
| Entertainment | |
| Multifunctional Hall | |
| Features | |
| Multi-angle box design | |
| Enclosure:birch plywood with structured | |
| Finish:Wear-resistant texturde black paint | |
| Inverted phaes-low-frequency radiation | |
| Freely switch passive\active crossover | |

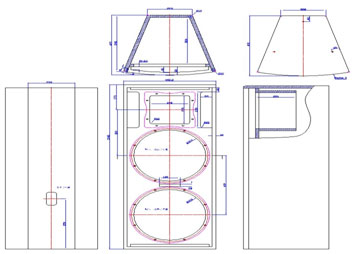

| Construction drawing | |
 | |
| IMPEDANCE | SENSITIVITY |
 |
 |
