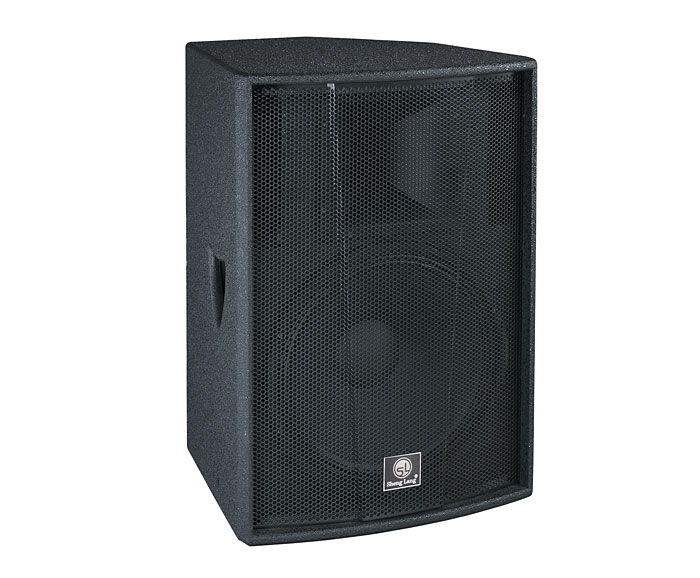

WF15+
DETAIL INFO
| WF series special trapezoidal cabinet design, the solid frame combination structure, convenient installation and array, body spray black polyester waterproof paint, easy to protection, not only waterproof, moistureproof, fast, and easy to daily protection. WF series sound box is suitable for the gym, theatre, DISCO, nightclubs, KTV, entertainment such as shaking it slowly. Require wider sound effect when available WS118 / WS218 ultra-low frequency box used together, can have a better sound effect. This series adopts German DAAS3L + computer testing equipment for quality determination of the detailed, and Italy CLIO audio test system. Built-in adopts computer detecting passive divider. | |
| Technical Parameter | |
| Frequency Response | 55Hz-18KHz(±3bB)/45Hz-20KHz(±10dB) |
| Sensitivity（1W/1m） | 99dB(90Hz-20KHz) |
| Nominal lmpedance | 80hm |
| Power Rating | 450W(AES) |
| Peak power | 1800W(PEAK) |
| Crossover Frequency | 1.8KHz |
| LF Components | 1×15”woofer(3”voice coil) |
| HF Components | 1×1.4”exit compression driver(3”voice coil) |
| Nominal Coverage | 80°(H)×50°(V) |
| Calculated Output(max) | 123dB SPL,129dB SPL peak |
| Dimensions(HxWxD) | 690×472×446(mm) |
| Weights | 32.5(Kg) |
| Connectors | 2Neutrik NL4MP connectors |
| Suspension Hardware | M8 Rigging point |
| Applications | |
| Conference room | |
| Background music | |
| House of worship | |
| Entertainment | |
| Multifunctional Hall | |
| Features | |
| Multi-angle box design | |
| Enclosure:birch plywood with structured | |
| Finish：Wear-resistant texturde black paint | |
| Inverted phaes-low-frequency radiation | |
| Freely switch passive\active crossover | |
| Construction drawing | |
 | |
| IMPEDANCE | SENSITIVITY |
 |
 |
